CSS3 Animations

The CSS3 animations feature allows you to create keyframe animations.

Creating CSS3 Animations

In the previous chapter you've seen how to do simple animations like animating a property from one value to another via CSS3 transitions feature. However, the CSS3 transitions provide little control on how the animation progresses over time.

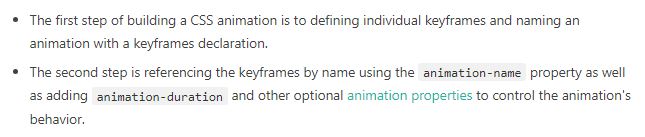

The CSS3 animations take it a step further with keyframe-based animations that allow you to specify the changes in CSS properties over time as a set of keyframes, like flash animations. Creating CSS animations is a two step process, as shown in the example below:

However, it is not necessary to define the keyframes rules before referencing or applying it. The following example will show you how to animate a < div> box horizontally from one position to another using the CSS3 animation feature.

You must specify at least two properties animation-name and the animation-duration (greater than 0), to make the animation occur. However, all the other animation properties are optional, as their default values don't prevent an animation from happening.

Defining Keyframes

Keyframes are used to specify the values for the animating properties at various stages of the animation. Keyframes are specified using a specialized CSS at-rule — @keyframes. The keyframe selector for a keyframe style rule starts with a percentage (%) or the keywords from (same as 0%) or to (same as 100%). The selector is used to specify where a keyframe is constructed along the duration of the animation.

Percentages represent a percentage of the animation duration, 0% represents the starting point of the animation, 100% represents the end point, 50% represents the midpoint and so on. That means, a 50% keyframe in a 2s animation would be 1s into an animation.

.box { width: 50px; height: 50px; margin: 100px; background: red; position: relative; left: 0; /* Chrome, Safari, Opera */ -webkit-animation-name: shakeit; -webkit-animation-duration: 2s; /* Standard syntax */ animation-name: shakeit; animation-duration: 2s; } /* Chrome, Safari, Opera */ @-webkit-keyframes shakeit { 12.5% {left: -50px;} 25% {left: 50px;} 37.5% {left: -25px;} 50% {left: 25px;} 62.5% {left: -10px;} 75% {left: 10px;} } /* Standard syntax */ @keyframes shakeit { 12.5% {left: -50px;} 25% {left: 50px;} 37.5% {left: -25px;} 50% {left: 25px;} 62.5% {left: -10px;} 75% {left: 10px;} }

Animation Shorthand Property

There are many properties to consider when creating the animations. However, it is also possible to specify all the animations properties in one single property to shorten the code.

The animation property is a shorthand property for setting all the individual animation properties at once in the listed order. For example:

.box { width: 50px; height: 50px; background: red; position: relative; /* Chrome, Safari, Opera */ -webkit-animation: repeatit 2s linear 0s infinite alternate; /* Standard syntax */ animation: repeatit 2s linear 0s infinite alternate; } /* Chrome, Safari, Opera */ @-webkit-keyframes repeatit { from {left: 0;} to {left: 50%;} } /* Standard syntax */ @keyframes repeatit { from {left: 0;} to {left: 50%;} }

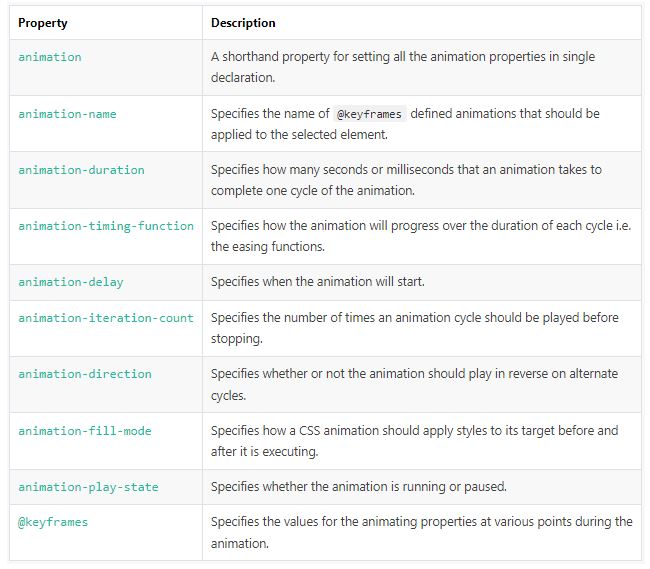

CSS3 Animation Properties.

The following table provides a brief overview of all the animation-related properties.
